Static and Self Cleaning Filters

Filters

ICS's static and self cleaning filters, manufactured within the company's group are widely installed within a vast range of industries, including food production, chemical processes, environmental applications, pulp and paper manufacture and steel production and where there is a need for the separation of solids from liquids.

The in-line filters are available in both static and self cleaning versions, with flow rates staring at 0.2m3/hr to 700m3/hr and depending upon flow rates and contamination, filtration removal can be as small as10 micron.

Self cleaning filters Advantages

The basic principal lies in the simplicity and structural robustness of the filter.

The simple construction decreases maintenance costs and down time and also leads to long lasting components. This is pertinent to the special cartridge configuration, its construction material. Our filters have proved to last for years without cartridge replacement.

In addition based on standard models, special specific designs can be produced to meet clients filtration solutions.

Continuous and increased operation

No plant downtime, usually required with static or backwash filters.

Reduced energy costs

Low running costs, low electricity consumption.

Improved product quality

Elimination of liquid contamination.

Easier maintenance

Few components subject to wear, simple disassembly procedures. Possibility of planned maintenance contracts. Technical assistances with highly trained engineers.

Compact size

Easy installation in most plants

Applications*

Paper Mills

Water from flotation tanks, filtering of coatings, inlet and discharge, white water, recirculation water, inlet process water from contaminated sources

Metallurgical industry

Primary water, continuing casting process cooling water, recycled water in rolling mills and aluminium mills, pump protection

Machine tools

Lubricating-cooling emulsions - recycling.

Food industry

Vegetable prewash & post wash, food sieving, food process.

Textile industry

Water recirculation, chemical recirculation, dye filtration.

Water purification

Recirculation, pump protection, bore & well cleansing.

Chemical Industry

Desalinisation plants, glassmaking, plastics.

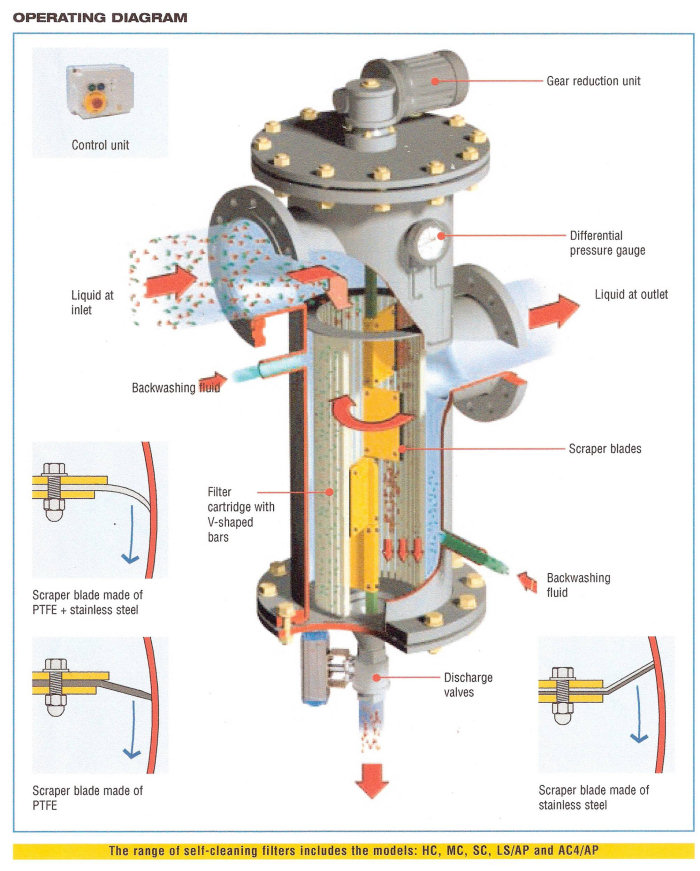

Diagram

Self Cleaning Filters' operating principle

The filtered liquid passes from the inside to the outside of the cartridge, leaving the filtered deposit on the internal surface.

This creates a pressure differential. On reaching a preset pressure differential level, the automatic filter cartridge cleaning cycle commences. The gear reduction unit rotates the scraper blades, removing the media, which is discharged through the discharge valve.

The filter cleaning operation functions as the unit continues its filter operation, giving the benefit of no down time.

Click here for larger diagram

Click Here to complete our Filtration questionnaire

*(some of the application - but any application where solids are required to be reduced and/or separated from liquids)





Self Cleaning Filters Catalogue

Self Cleaning Filter Catalog (PDF)
(click to download)



PDF Product Downloads

HF HF

High flow self cleaning

HHF HHF

Highest flow self cleaning

LF LF

Low flow self cleaning

MF MF

Medium flow self cleaning

MFLP MFLP

Medium flow self cleaning

YLSAP YLSAP

Medium flow Y filter

ALF4P ALF4P

Low flow static

YLS/YMS YLS/YMS

Medium flow static

ALSF3/ASF3 ALSF3/ASF3

Static high filtration

ALSF4 ALSF4

Medium flow static

ALSF1 ALSF1

Medium flow static

P Series P Series

Low flow static
